Air Blast Room

Name: Air Blast Room
Brand: QINGDAO QINGGONG MACHINERY CO., LTD.

Air blasting room or Air blasting cabinet with pneumatic media reclaim system – An economical alternative, vacuum reclaim systems utilize cyclone separators to recover usable media to the blast machine, while dust and broken-down media are drawn out into the dust collection system.

The media is vacuumed up, cleaned and returned to the blast pot. The system in the air blast equipment automatically cleans recyclable abrasives, through the use of a cyclone separator, and returns the clean, good media back to the blast machine. Also known as sweep-in or pneumatic recovery systems, Qinggong Vacuum Reclaim Systems rely on the use of cyclone separators and work best with lighter abrasives such as glass bead, aluminum oxide, garnet or plastic.

We have air blasting equipment and blast room for sale.

Products

NEWS

Features to Consider When Choosing a Satellite Table Shot Blasting Machine
When it comes to surface preparation and cleaning, satellite table shot blasting machines have emerged as a reliable choice in various industries. These machines are widely used for removing rust, sca...
Read More >
What can we do to reduce blasting media consumption?
Blasting media consumption is a direct cost, as the number of cycles and transmitted energy of a blasting media affects consumption. It is generally estimated that blasting media represents approximat...
Read More >
The significance of shot blasting machine to industrial development
The operation of the shot blasting machine is to use the shot blasting machine to blast steel shot and steel grit onto the surface of the workpiece to be processed at high speed. Although the working ...
Read More >

Contact

No 377, Langyatai S Rd, Huangdao District, 266400, Qingdao City, China
Email: info@shotblastpro.com
Tel: +86-532-82121566
Whatsapp: +8613235322903
Free Quote

Feature of our Air Blast Room Cabinet:

Heavy gauge steel enclosure is used in air blasting room.

Fluorescent lighting above and outside the enclosure
Safety door interlocks
Mandoor and viewing window
Emergency light glass – above man door
Full floor recovery
Bar grating rated at 2000 lb per sq. Ft. uniform loading
Reclaim separation system with debris screen
Cartridge ventilation dust collector with automatic pulse jet filter cleaning
Siemens12 control panel
Floor Sections To Transition

air blast room 1

Dust Collector For Air Blasting Equipment

The dust collection system is of Qinggong own design and manufacture. It is dry air system with continuous on-line filter cleaning. The dust collector for sandblasting room is supplied with an appropriately sized high capacity exhauster, pneumatic and electrical controls. The blast room dust collector system is designed and built for efficient operation and is the result of years of research and experience in dust collection systems for the abrasive blast cleaning industry.

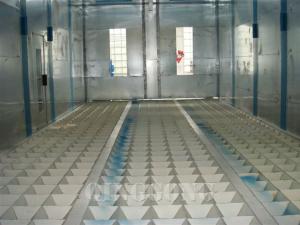

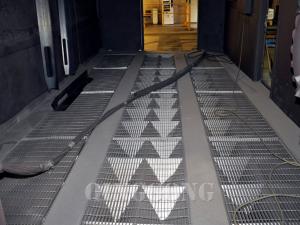

Floor Sections of the Air Blasting Room

Customized Air Blast Room

The Air Blast Room is a customized product, if you are not sure what size sandblasting room you need, please tell me the following information:

1. what kind of workpiece do you need to blast

2. Maximum dimensions of the workpiece

3. Maximum weight of the workpiece

4. how to transpost the workpiece into blasting chamber

5. numbers of the operators
