Trolley Shot Blasting Machine

Name: Trolley Shot Blasting Machine
Brand: QINGDAO QINGGONG MACHINERY CO., LTD.

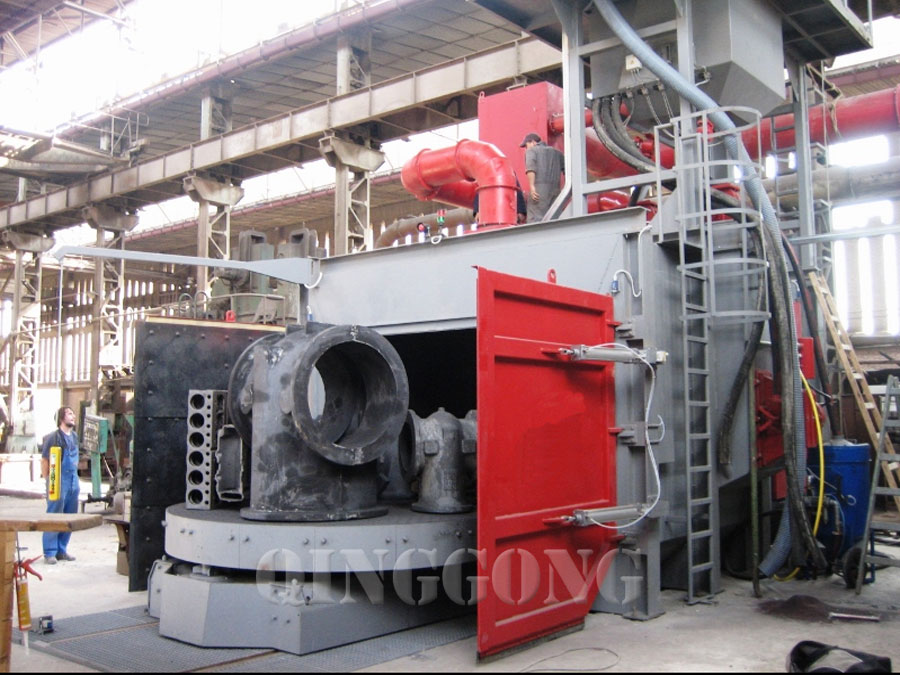

Shot blasting parts of different forms and dimensions, castings, forgings, pressed parts, parts and parts from fragile materials, cleaning of the surface, removing of casting sand and filings, consolidating of the surface before coloring, etc. Trolley type shot blasting machine is designed for shot blasting of large and heavy castings, complicated shapes in small series or single production. By trolley shot blast cleaning machine, working pieces are loaded to a rotating table on tip truck with lifting device (crane, lift truck). This rotating table is then transported in a chamber. In the entrance of this chamber are two-sided doors.

Products

NEWS

Features to Consider When Choosing a Satellite Table Shot Blasting Machine
When it comes to surface preparation and cleaning, satellite table shot blasting machines have emerged as a reliable choice in various industries. These machines are widely used for removing rust, sca...
Read More >
What can we do to reduce blasting media consumption?
Blasting media consumption is a direct cost, as the number of cycles and transmitted energy of a blasting media affects consumption. It is generally estimated that blasting media represents approximat...
Read More >
The significance of shot blasting machine to industrial development
The operation of the shot blasting machine is to use the shot blasting machine to blast steel shot and steel grit onto the surface of the workpiece to be processed at high speed. Although the working ...
Read More >

Contact

No 377, Langyatai S Rd, Huangdao District, 266400, Qingdao City, China
Email: info@shotblastpro.com
Tel: +86-532-82121566
Whatsapp: +8613235322903
Free Quote

Trolley Shot Blasting Machine Working Principle

trolley shot blasting machine 1

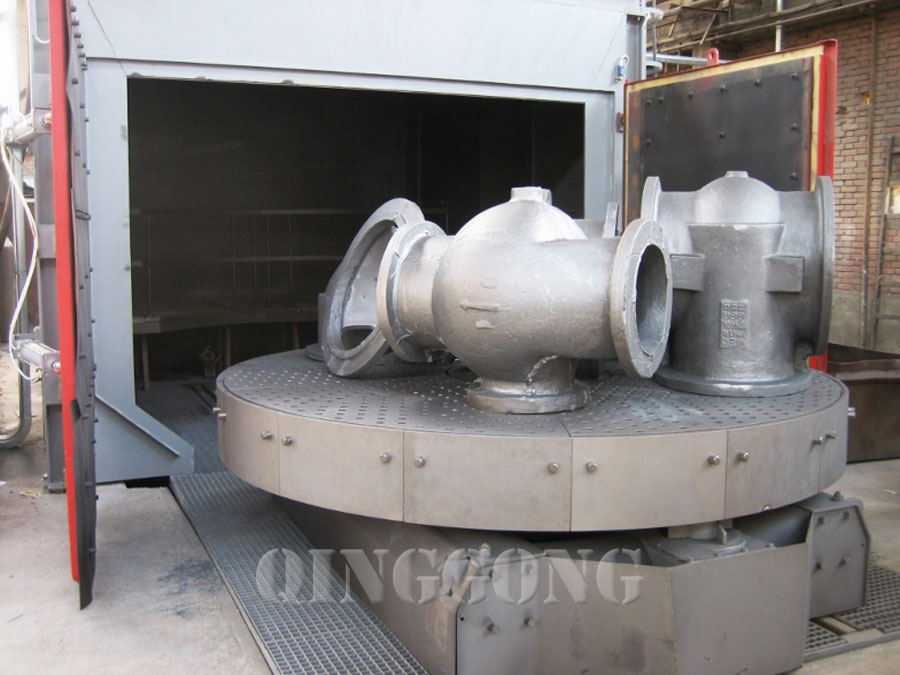

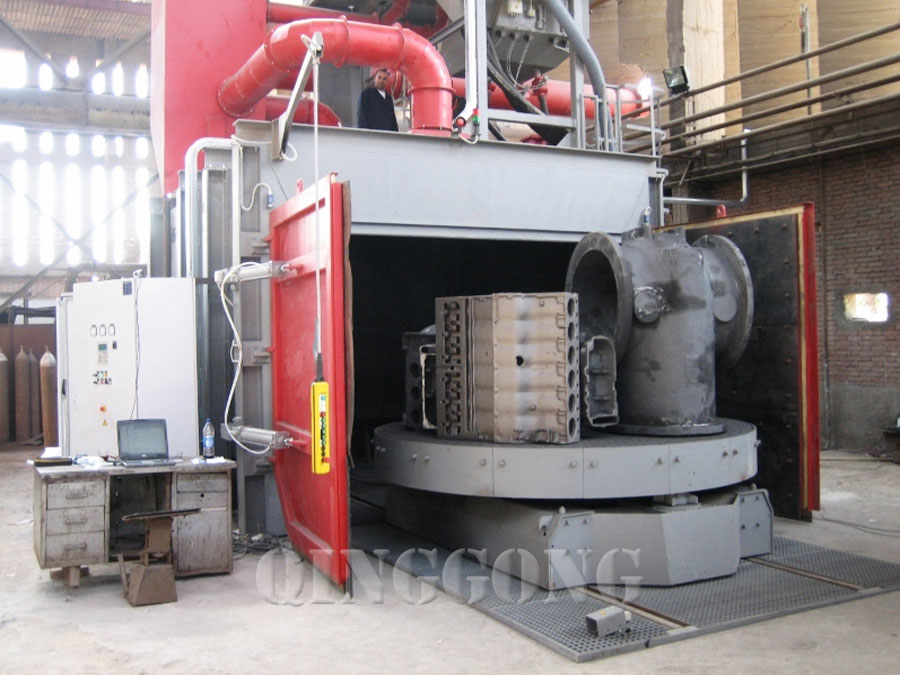

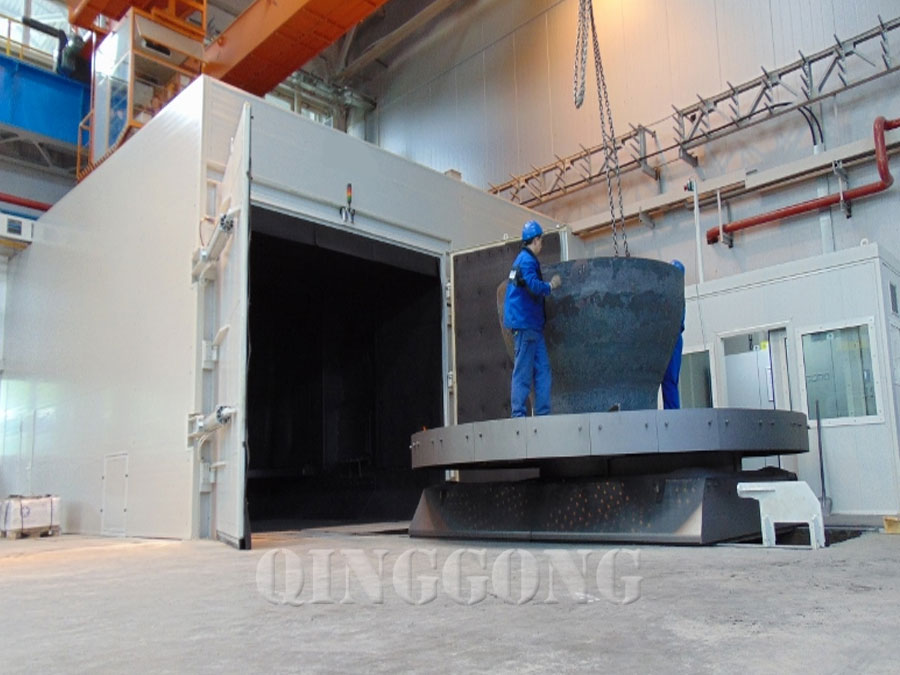

By means of handy lifts, the workpieces are loaded on the perforated rotating working table of the trolley, which then drives to the shot blasting chamber. It is recommended that the table surface is covered with the workpieces as much as possible. The trolley shot blasting machine normally works with the automatic switching-on, and the shot blasting time is set by means of a program. During shot blasting the workpieces move on the rotating table through the jets of abrasive of throwing wheels, which are installed under different angles, enabling higher efficiency. Then the workpieces must be turned and repeat the shot-blasting process.

Overview of Trolley Shot Blasting Machine

The trolley shot blasting machine is a common shot blasting machine composed of rotating and traveling trolley, shot blasting chamber, abrasive recovery system, dust collector, electric control cabinet, air control cabinet and other components. Mainly apply in machine tool ,metallurgy industry ,rolling stock ,construction machinery ,mining machinery and other large and middle workpiece, such as castings, forgings, weight can reach 300 tons.

Trolley Shot Blasting Machine Technical Specifications

type	QGT2000	QGT2500	QGT3000	QGT3500
cleaning workpiece size(mm)	∅2000	∅2500	∅3000	∅3500
No. of blast wheel	2	3	4	4
power of blast wheel (kw)	11 or 15	11 or 15	11 or 15 or18.5	11 or 15 or18.5
dust collector power (kw)	11 or 15	11 or 15	22 or 30	22 or 30
foundation pit	yes	yes	yes	yes

Features of Trolley Shot Blasting Machine

1. Suitable for blasting workpieces of medium and large size

2. Suitable for blasting workpieces of medium and large weight (300tons is no problem)

3. Low noise, environmental protection equipment

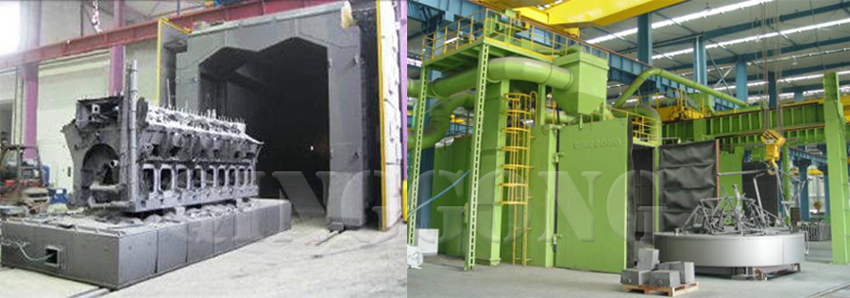

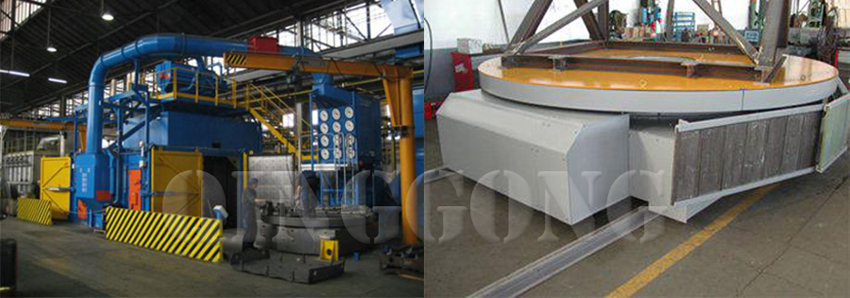

Applications of Trolley Shot Blasting Machine

trolley shot blasting machine 2
